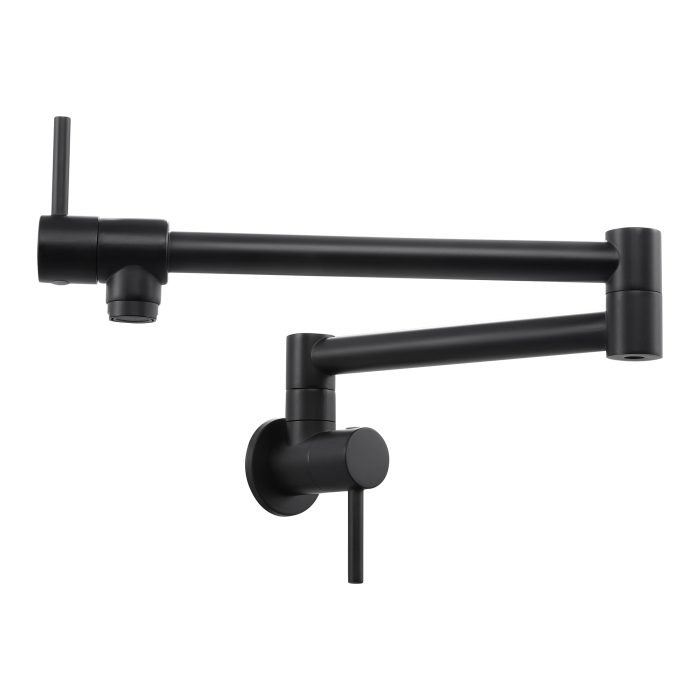

KES Matte Black Double Joint Swing Arm Pot Filler, cUPC NSF Certified Lead-Free, Brass | KN926LF-BK

SKU: KN926LF-BK

$75.04

KES Pot Filler Folding Kitchen Faucet Brass Double Joint Swing Arm Sink Faucet Articulating Wall Mount Two Handle Single Hole, Matte Black, cUPC NSF Certified Lead-Free, KN926LF-BK

Description

Brand: KES
Recommended Uses For Product: Kitchen
Mounting Type: Wall Mount
Finish Type: Black
Material: Brass
Color: Matte Black
Number of Handles: 2
Included Components: Pot filler faucet, 2.2 yards (2 meters) teflon tape, escutcheon
Hole Count: 1
Special Feature: Lead Free

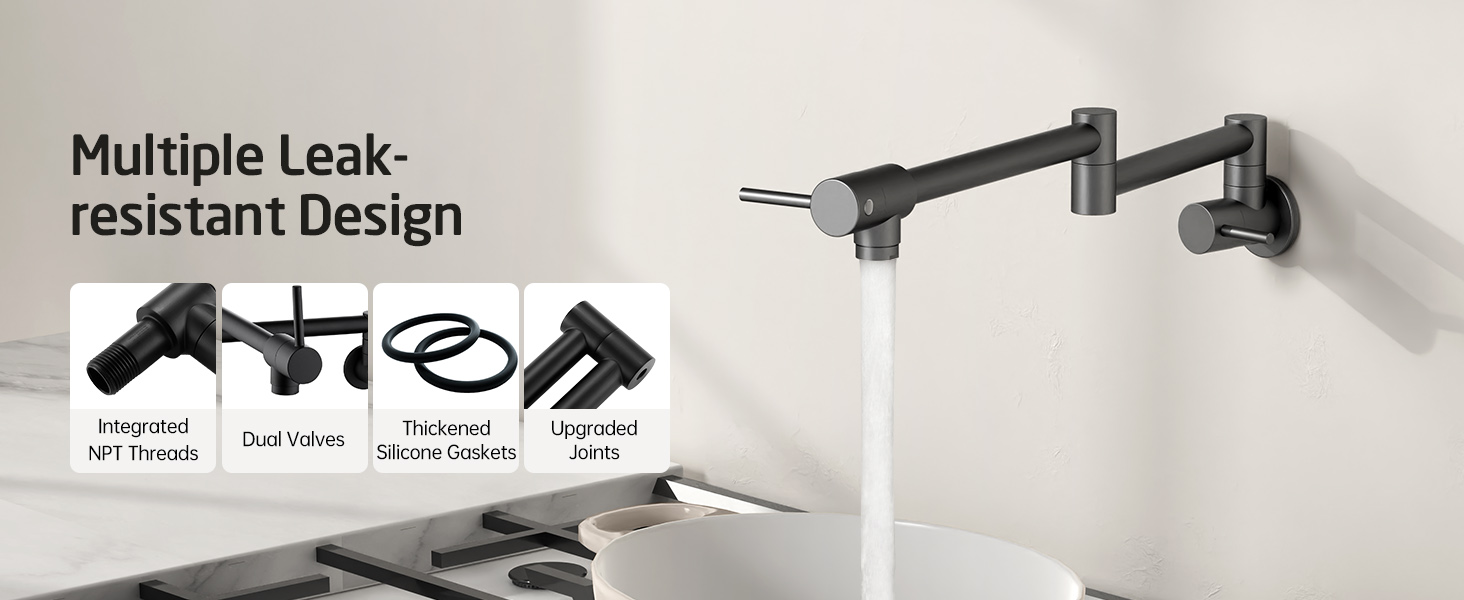

cUPC NSF Certified: This KES pot filler faucet black meets U.S. and Canada high-quality standard (Uniform Plumbing Code), certified by IAPMO. The faucet body is made from premium grade no-lead BRASS (with less than 0.25% lead content), complied with NSF/AB1953 lead-free regulation, ensuring it’s safe for drinking water. It provides much higher performance (high heat-resistance and pressure-resistance), sturdy and durability than zinc alloy ones. It can serve many years without leakage.

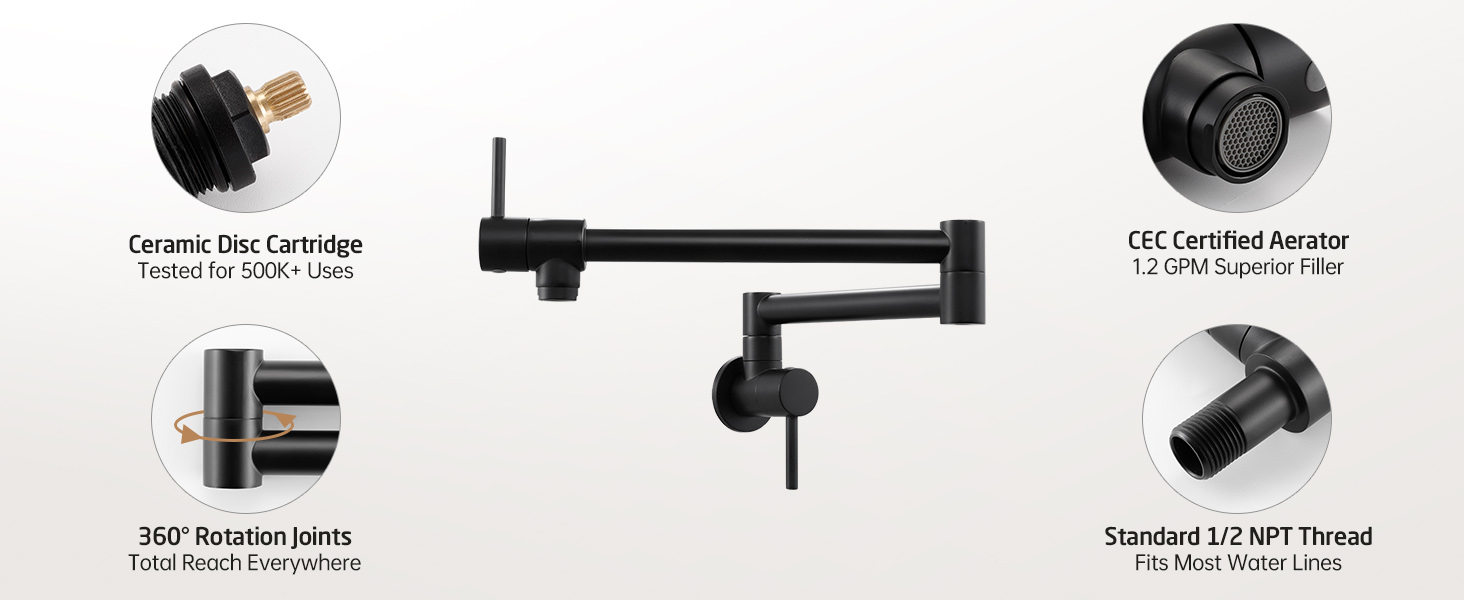

Dual Valves & Articulating Arms: This kitchen sink pot filler faucets features the convenience of two valve controls and an articulated arm that has a maximum reach of 17 inches. Plus, it folds out of the way when not in use, which saves kitchen space. The 360°rotating design makes it easy to fill large cooking vessels quickly without having to walk from the sink to the stove. (Just remember to turn off both valves after use.)
Superior Aerator: The superior aerator (1.8 GPM, which is compliant with California water efficiency regulations) creates a perfect aerated stream that’s quiet and non-splashing. Most importantly, it saves water!
Standard 1/2 NPT Threads: The connection threads have been updated to 1/2 NPT tapered threads (standard U.S. size). The faucet has a single hole wall-mounted installation and a single tap (not a mixer tap).
Package Included: Pot filler faucet, 2 meters teflon tape, and escutcheon. Everything you need is in the package, you can install the faucet right away after receiving the package.

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “KES Matte Black Double Joint Swing Arm Pot Filler, cUPC NSF Certified Lead-Free, Brass | KN926LF-BK”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

FAQ

Sink Faucets

FAQ

From Cartridge

Cause Remedy
Cartridge nut looseTighten cartridge nut. Click For Video
Cartridge damagedContact KES for replacement



From Spout

Cause Remedy
Spout damagedContact KES for replacement



From Aerator

Cause Remedy
Aerator gasket installed improperlyReinstall aerator
Gasket lostUse spare gasket or Contact KES for replacement
Gasket aging/damagedAs above

Correct installation tip












From Supply Hose/Quick Connect Hose

Cause Remedy
Centerbody damagedClick For Videoto check.Contact KES for replacement
Supply hose/ Joint of quick connect hose damagedAs above
The problem still exists or No after-sales information you need? Contact KES: [email protected] or click to Chat now!

① Low Water Pressure/Plumbing Clogged

Disconnect the supply hose and check if the water flow from the home plumbing is low. If so, contact a plumber for an inspection.


② Supply Hose Kinked

Fold supply hoses as shown below: Use model L4150 as a demonstrated










③ Clogged Aerator

Click For Video:
Using Aerator Wrench











Using Adjustable Wrench And Towel (Anti-scratch)






      • Some models do not include the Aerator Wrench and 2.2 gpm spare aerator.
      • Contact KES to obtain a replacement kit for the aerator if needed.
      •  Please check your local plumbing codes to ensure compliance before making any changes.

④ Cartridge Clogged/Damaged

Contact KES for replacement.

The problem still exists or No after-sales information you need? Contact KES: [email protected] or click to 🔗Chat now!

Notes Before Installation

    • Remember to flush the plumbing pipes to clean any debris or sediment by letting the water run for a few minutes.
    • Turn off your sink water supply while installing.
    • Not for bathtub use.



Install The Quick Connect Hose

Click For  Operation Video



Use model L4350 as a demonstration

Install The Adapters






For model Z504,KES supply two quick connectors(Size:1/4”&3/8”)





Installation Tips

  1. Remove the blue clip on the quick connector.
  2. Tighten the connector by hand. Do not use a wrench as it may cause damage to the quick connector.
  3. Put the blue clip back on after inserting the water supply line.



 Hose too short

For supply hose
KES can provide 90cm long hose for customers to purchase or replace. If necessary, click to 🔗 Contact KES

For quick connect hose
KES can provide 50cm long quick connect hose for customers to purchase or replace. If necessary, click to🔗 Contact KES

① Correct handle installation method for double handle faucet

  • TIP 1: Before installation, the handle should be in a fully closed state
  • TIP 2: If the base is not aligned during installation, adjust the alignment before installing

  • TIP 3: Locking screws can prevent the handle from shifting


② Handles crooked or not symmetric

This may be caused by damage to the cartridge. You can first try self-checking and adjusting according to the following video:
Applicable modelClick for video
Handle adjustment for L4317mh5_J72AOaw
How to adjust the wrong handle direction for L4317PyTrktQeUq8
Handle adjustment for L4350duXhUgvjKR0
