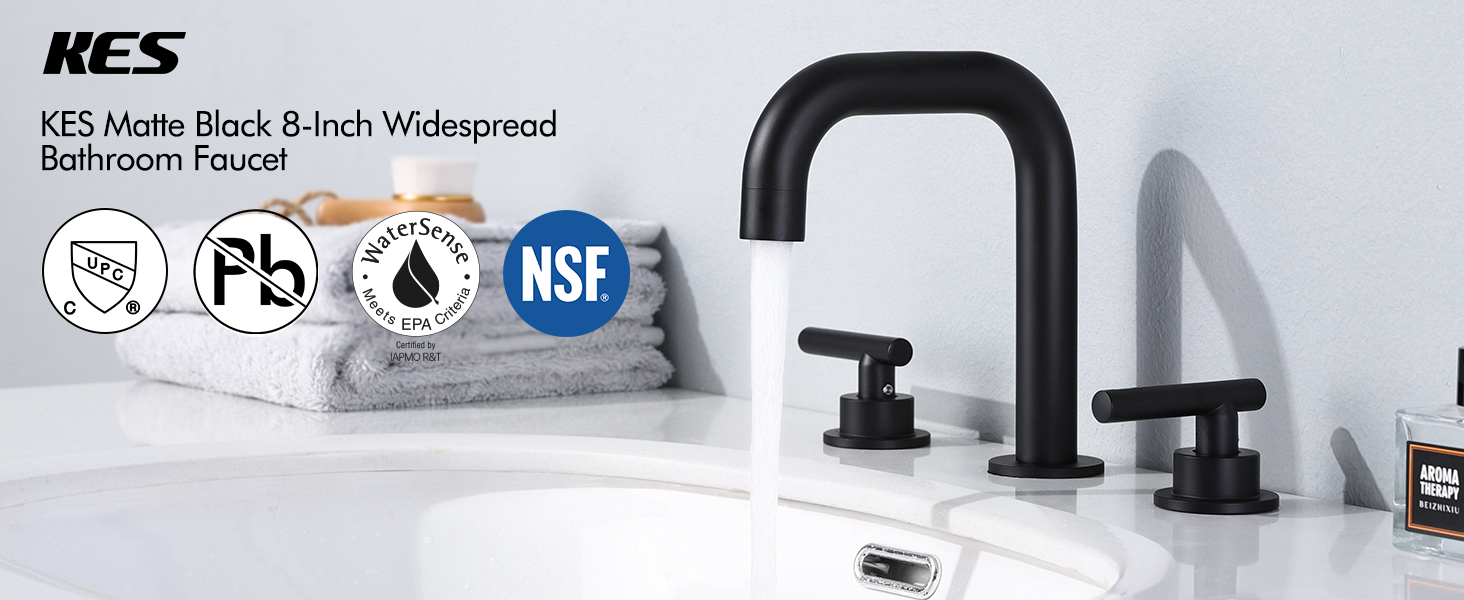

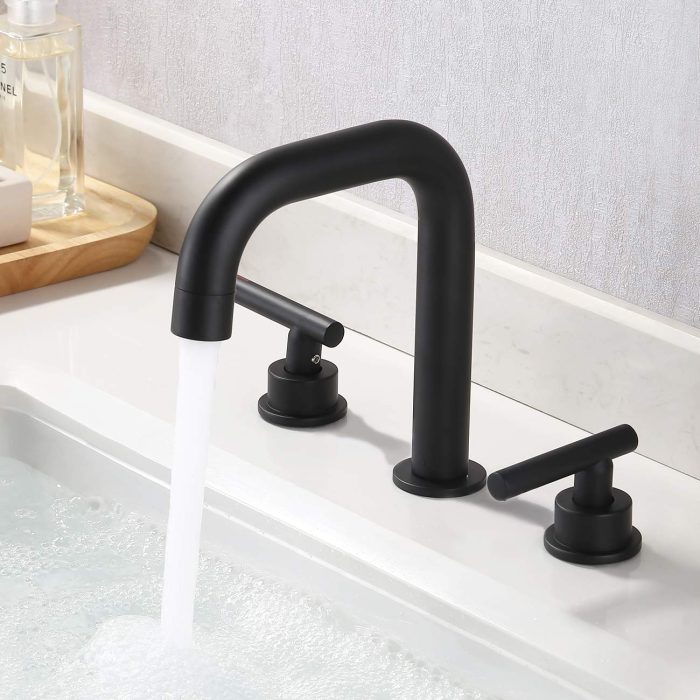

KES Matte Black 3-Hole Widespread Bathroom Faucets, cUPC NSF Certified Lead-Free, Brass | L4317LF-BK

SKU: L4317LF-BK

$59.99

KES Matte Black Bathroom Faucet, Widespread Bathroom Faucet 8-Inch for Bathroom Sink 3 Hole Modern Vanity Sink Faucet 2 Handle Brass with Supply Hoses, Sink Drain Not Included, L4317LFF12-BK

Description

Brand: KES
Recommended Uses For Product: Bathroom
Mounting Type: Protruding
Finish Type: Black
Material: Brass
Color: Matte Black
Number of Handles: 2
Included Components: Hose
Hole Count: 3
Special Feature: Easy to Install

Lead-free Brass Construction & cUPC NSF Certified: Composed of high quality brass, KES copper faucet has the function of disinfection and sterilization, safe for drinking water. With good resistance against pressure and corrosion, it is more upscale and hardwearing than other faucets. Faucet body is made of premium grade NO-LEAD brass (with less than 0.25% lead content), complied with the Safe Drinking Water Act (SDWA), Uniform Plumbing Code (certified by IAMPO) and NSF/AB1953 no-lead regulation.
Important: Once the supply lines are connected, you need to remove the aerator from the faucet. Slowly turn on the water and check all the connections for leaks. Let the water run for a few minutes to clear the lines, then turn off the faucet and replace the aerator.
Superior Aerator: The superior aerator (1.2 GPM, which is compliant with California water efficiency regulations) creates a perfect aerated stream that’s quiet and non-splashing. Most importantly, it saves water!

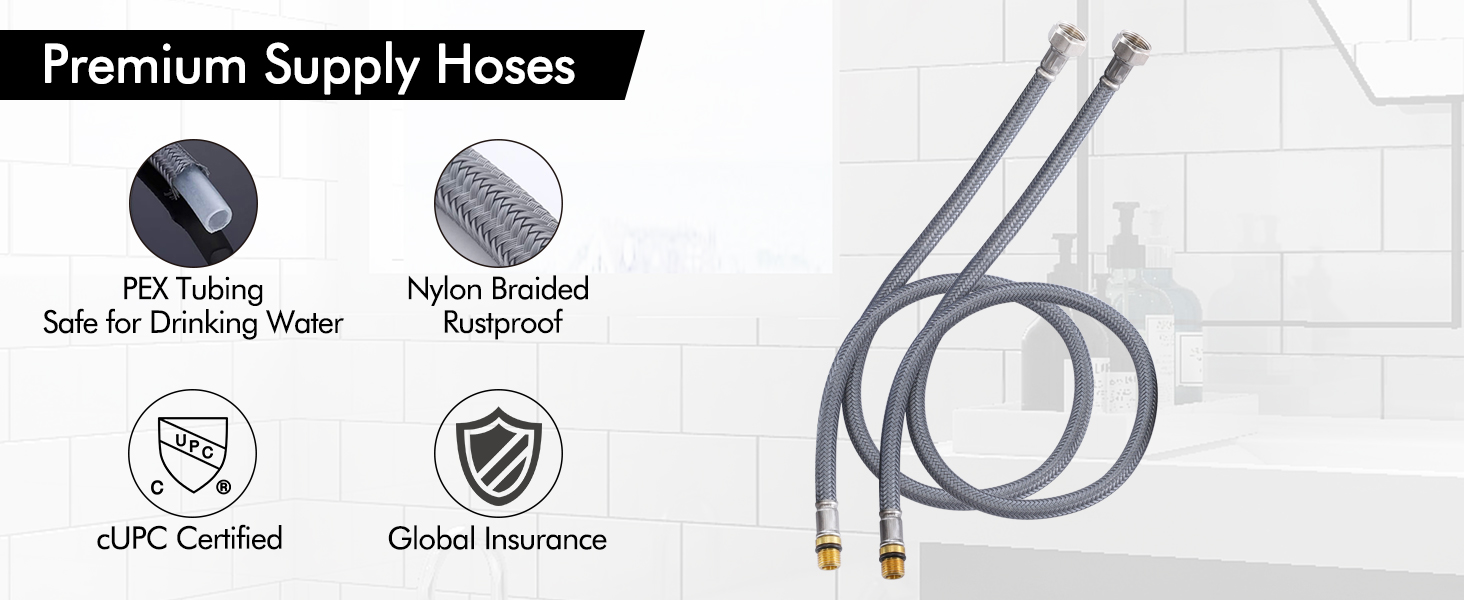

Premium Supply Hoses: Hoses come with nylon braided exterior protects against chemical corrosion (commonly caused by detergent) and rusting. Inner tubing is made from PEX, safe for drinking water. With standard 3/8 Inch Compression Thread connectors (of course, made from lead-free brass, drinking water safe again!), you can easily connect our hoses with your stop valves. Our supply hoses have million dollars global insurance coverage.

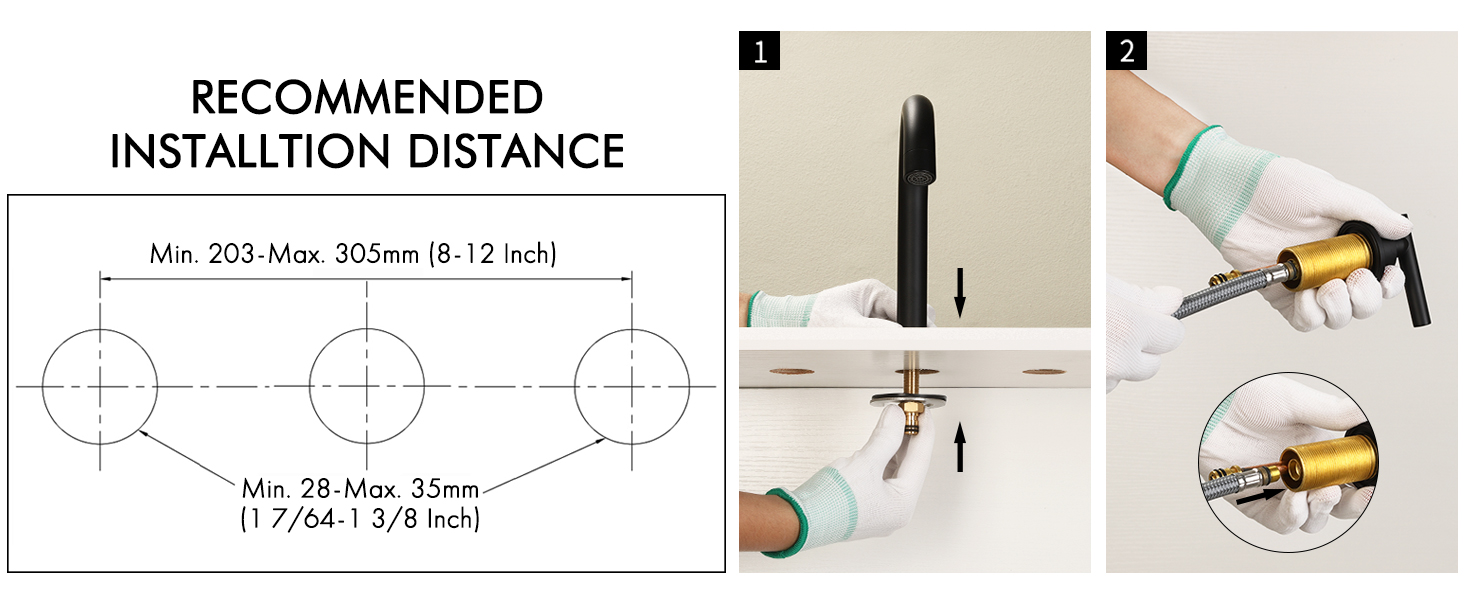

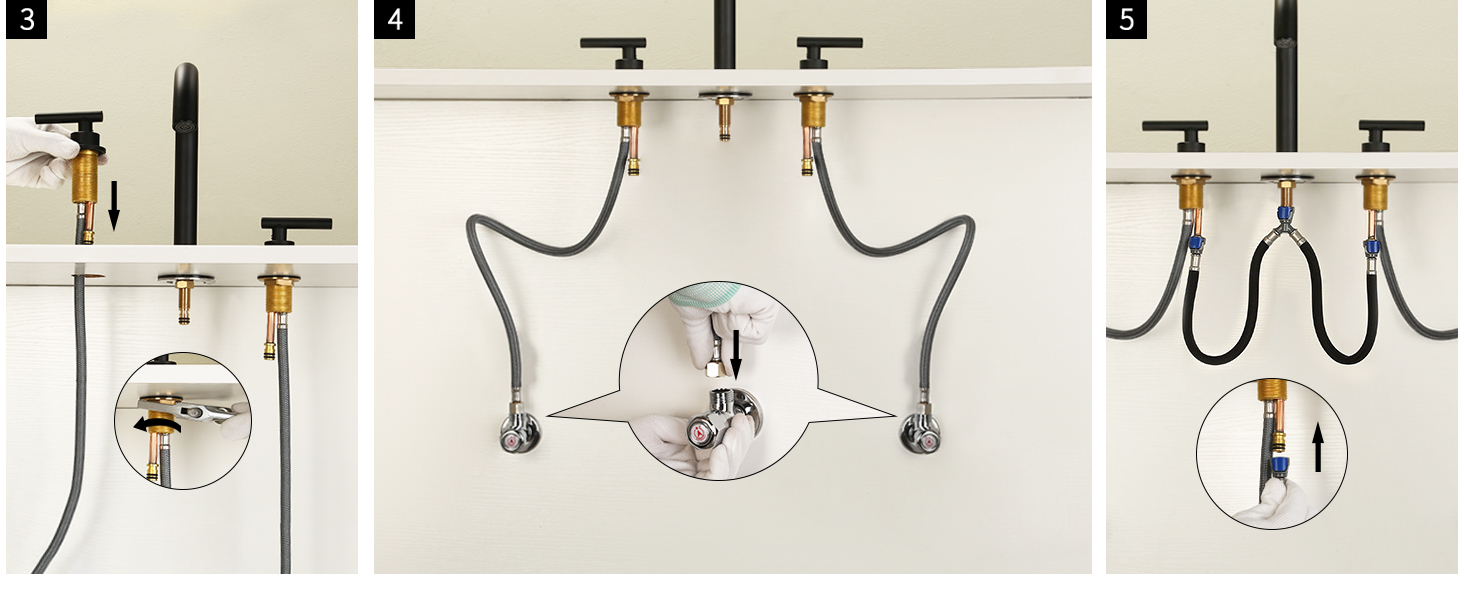

Easy to Install: KES provides a one-piece body that can be quickly installed. Just place the unit over the mounting holes, connect the unit to the water hoses, and tighten the screws to complete the installation. This bathroom faucet has 3 parts (2 handles and a spout) and can be installed into most sinks that have holes between 8″ and 12″ apart. Mounting Hole Diameter: 1.1″ (28mm) to 1.37″ (35mm). The maximum countertop thickness is 1.37″ (35 mm).

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “KES Matte Black 3-Hole Widespread Bathroom Faucets, cUPC NSF Certified Lead-Free, Brass | L4317LF-BK”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

FAQ

Sink Faucets

FAQ

From Cartridge

Cause Remedy
Cartridge nut looseTighten cartridge nut. Click For Video
Cartridge damagedContact KES for replacement



From Spout

Cause Remedy
Spout damagedContact KES for replacement



From Aerator

Cause Remedy
Aerator gasket installed improperlyReinstall aerator
Gasket lostUse spare gasket or Contact KES for replacement
Gasket aging/damagedAs above

Correct installation tip












From Supply Hose/Quick Connect Hose

Cause Remedy
Centerbody damagedClick For Videoto check.Contact KES for replacement
Supply hose/ Joint of quick connect hose damagedAs above
The problem still exists or No after-sales information you need? Contact KES: [email protected] or click to Chat now!

① Low Water Pressure/Plumbing Clogged

Disconnect the supply hose and check if the water flow from the home plumbing is low. If so, contact a plumber for an inspection.


② Supply Hose Kinked

Fold supply hoses as shown below: Use model L4150 as a demonstrated










③ Clogged Aerator

Click For Video:
Using Aerator Wrench











Using Adjustable Wrench And Towel (Anti-scratch)






      • Some models do not include the Aerator Wrench and 2.2 gpm spare aerator.
      • Contact KES to obtain a replacement kit for the aerator if needed.
      •  Please check your local plumbing codes to ensure compliance before making any changes.

④ Cartridge Clogged/Damaged

Contact KES for replacement.

The problem still exists or No after-sales information you need? Contact KES: [email protected] or click to 🔗Chat now!

Notes Before Installation

    • Remember to flush the plumbing pipes to clean any debris or sediment by letting the water run for a few minutes.
    • Turn off your sink water supply while installing.
    • Not for bathtub use.



Install The Quick Connect Hose

Click For  Operation Video



Use model L4350 as a demonstration

Install The Adapters






For model Z504,KES supply two quick connectors(Size:1/4”&3/8”)





Installation Tips

  1. Remove the blue clip on the quick connector.
  2. Tighten the connector by hand. Do not use a wrench as it may cause damage to the quick connector.
  3. Put the blue clip back on after inserting the water supply line.



 Hose too short

For supply hose
KES can provide 90cm long hose for customers to purchase or replace. If necessary, click to 🔗 Contact KES

For quick connect hose
KES can provide 50cm long quick connect hose for customers to purchase or replace. If necessary, click to🔗 Contact KES

① Correct handle installation method for double handle faucet

  • TIP 1: Before installation, the handle should be in a fully closed state
  • TIP 2: If the base is not aligned during installation, adjust the alignment before installing

  • TIP 3: Locking screws can prevent the handle from shifting


② Handles crooked or not symmetric

This may be caused by damage to the cartridge. You can first try self-checking and adjusting according to the following video:
Applicable modelClick for video
Handle adjustment for L4317mh5_J72AOaw
How to adjust the wrong handle direction for L4317PyTrktQeUq8
Handle adjustment for L4350duXhUgvjKR0
DOCUMENTS & VIDEOS

Installation Documents
